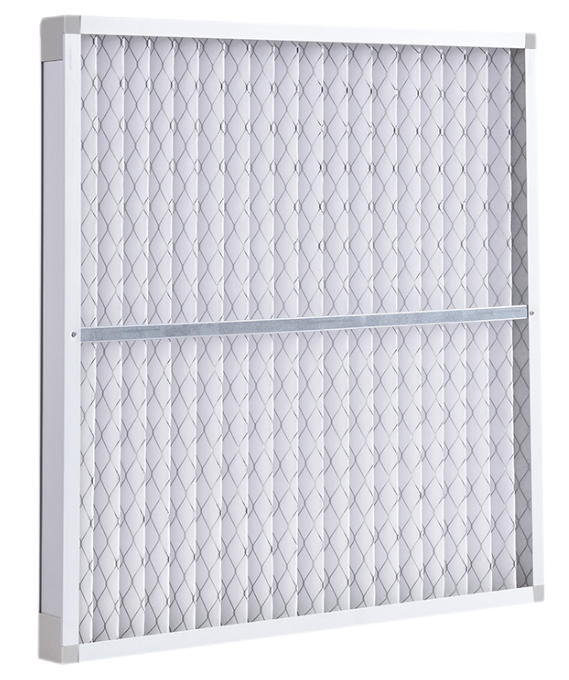

PANEL/PLATE AIR FILTER

NanoFiltech G2/G3/G4/F5 Panel Air Filters are widely used as primary filters in HVAC and ventilation systems across commercial and industrial environments. Built with durable frames and high-performance synthetic or glass fiber media, these filters provide reliable protection for downstream equipment. Ideal for office buildings, cleanrooms, and factories, our filters are available in standard and custom sizes. OEM services and global delivery available.

* Name
* E-mail
Phone
Company
*Message

Product Features:

~Removable Frame

~Washable Filter Media (recommended 2-3 times)

~High Dust-Holding Capacity

~Flame-Resistant Panel Design with Reinforcement Ribs



Product Structure:

~Aluminum Frame with ABS/Aluminum Corners – Sturdy and stable construction

~Removable Frame Design – Allows easy filter media replacement and reuse

~Reinforcement Ribs – Enhances durability and rigidity

~High-Quality Polyester Synthetic Fiber Media – Washable, reusable, and designed with a gradient density structure for optimal dust retention and extended lifespan



Frame

Galvanized steel, aluminium, stainless steel,

Frame thickness options

10mm/21mm/23mm/46mm/96mm

Filter Media

High quality polyester synthetic fibres

Stiffener

Galvanised/sprayed wire

Filtration Efficiency

G2、G3、G4、F5 (EN779)

Connection angle

Strong, high temperature resistant ABS plastic corner / aluminium alloy corner

Maximum temperature (°C)

93(200°F)

Applications

  • - Pre-filtration for HVAC & Ventilation Systems – Prevents dust buildup and contamination
  • - Air Compressor Pre-filtration
  • - Cleanroom Centralized Air Conditioning & Return Air Filtration – Extends the service life of HEPA filters
  • - Industrial Ventilation Systems – Provides general air purification for factories and workshops
  • - Baking finish house
  • - Spray booth
  • - High-temp operation environment
  • - High-temp operation environment, air pollutants removal
  • - Etc...



OEM AND ODM ARE ACCEPTABLE.
